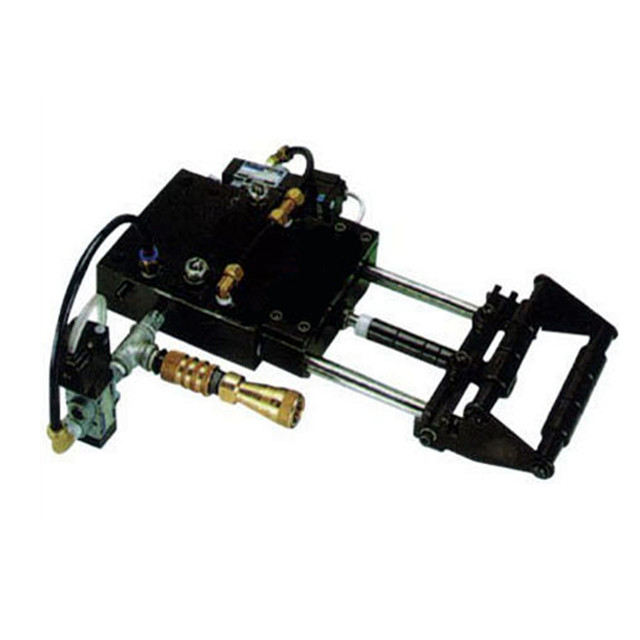

Automatic Air Feeder Machine

Name: Automatic Air Feeder Machine
Brand: DURA
Price: 1 USD

China Automatic Air Feeder Machine wholesale

Brand Name : DURA

Model Number : AF-1C~14C AF-5CS

Certification : As Per Customer's Request

Place of Origin : Jiangsu, China

MOQ : 1 SET

Price : to be negotiated

Payment Terms : L/C, D/P, T/T

Supply Ability : 1000 Sets Per Month

Delivery Time : 1 Set/7 Days; ＞1 To Be Negotiated

Packaging Details : Carton Box, Wooden Cases/Pallets, Plywood Cases/Pallets.

Name : Automatic Air Feeder Machine

Power : Various According to Different Machine Models

Key Selling Points : Long Service Life

After-sales Service : Engineers Available to Service Machinery Overseas

Application : Feeding Plastic/Tape/Metal

Use : Wire

Type : Feeder Machine

Voltage : Required

Contact Now

Automatic Air Feeder Machine

Briefs:

1. Type of feeder: Standard type, E-type, Standard & R type; E & R type 2. Applicable feeding material: metal strip, tape, plastic strip 3. A buffer is equipped on the models over AF-3C.

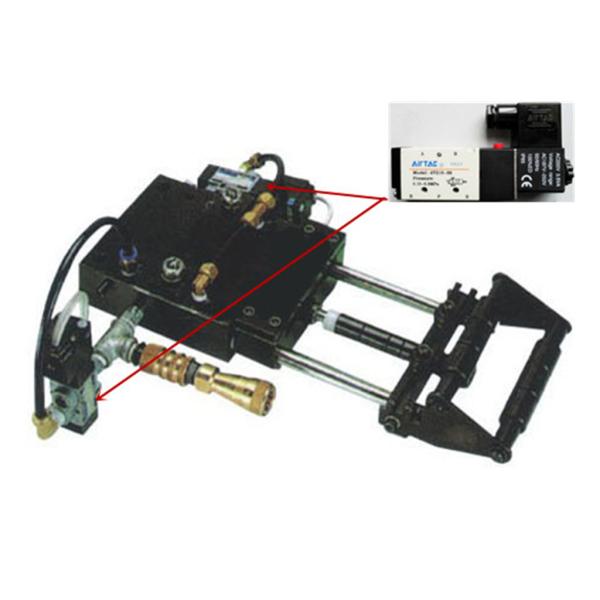

Air feeders, as a kind of automatic feeding device, are driven with compressed air. They are widely applied for press, press machine or punch, and its for all industrial production. Except the Standard type, other variations are all available upon request. E-type air feeder (instead of pilot lever, fixed with a pilot electromagnetic valve), Standard & R type air feeder (Based on standard type, added with an electromagnetic valve to make the fixed clamp carry a releasing function ) and E & R type (Both electromagnetic pilot valve and releasing valves are fixed ) can be supplied according to the real applications to different press machines. If a high precision feeding is needed, an electromagnetic valve for the fixed clamp’s releasing function is required; if a shorter stroke or long distance feed is happened to the press process, an electromagnetic pilot valve must be fixed.



 	 			Model
 			AF-1C
 			AF-2C
 			AF-3C
 			AF-4C
 			AF-5C
 			AF-6C
 			AF-7C

 			Max. Width(mm)
 			50
 			65
 			80
 			100
 			150
 			200
 			250

 			Max. Length(mm)
 			50
 			80
 			80
 			130
 			150
 			200
 			250

 			Max. Thickness(mm)
 			0.5
 			0.8
 			1.2
 			1.5
 			2
 			2
 			2.5

 			Air Press (kg/cm2)
 			4.5
 			4.5
 			4.5
 			4.5
 			4.5
 			4.5
 			4.5

 			Max. Speed (strokes/min)
 			200
 			160
 			150
 			93
 			80
 			60
 			48

 			Weight(kg)
 			8.8
 			9.6
 			12.8
 			19.6
 			38.4
 			52.4
 			80



 	 			Model
 			AF-8C
 			AF-10C
 			AF12C
 			AF-14C
 			AF-5CS

 			Max. Width(mm)
 			300
 			400
 			500
 			600
 			150

 			Max. Length(mm)
 			300
 			400
 			500
 			600
 			150

 			Max. Thickness(mm)
 			2.5
 			3
 			3
 			3.5
 			6

 			Air Press (kg/cm2)
 			4.5
 			4.5
 			4.5
 			4.5
 			4.5

 			Max. Speed (strokes/min)
 			40
 			30
 			23
 			20
 			60

 			Weight(kg)
 			95
 			178
 			240
 			200
 			90
